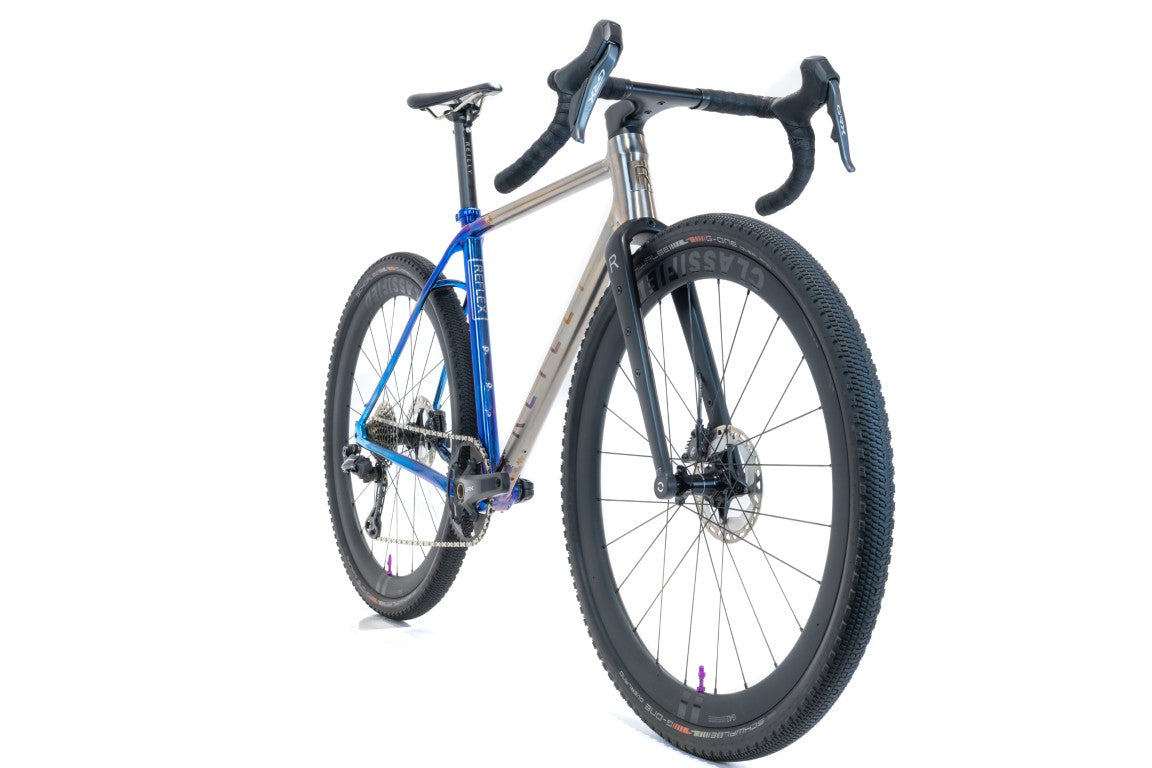

REFLEX // GRAVEL RACE DISC
The stunning Reflex takes gravel riding to a new level.
Combining the sleek investment cast aero shaping of the Fusion with the progressive geometry of the Gradient, the Reflex is the ultimate titanium gravel race bike. The fully integrated, clutter-free cockpit not only gives the bike it’s signature streamline design but also maximum hanging space for bikepacking kit.
With ultra-wide tyre clearance up to 700c x 55mm (29” x2.2”), the Reflex combines the characteristic ‘flex and flow’ of a Reilly titanium gravel bike with the agility of a race thoroughbred, making it the perfect beast for hitting the tech trails or clocking up ultra distance miles.
TO BOOK A DEMO RIDE OR FOR HELP WITH FULL BIKE BUILDS CONTACT SALES ON 01959 528 253 / SALES@REILLYCYCLEWORKS.COM
Regular price
£5,999.00
incl VAT for UK customers ONLY
Couldn't load pickup availability
Share the Reflex with your friends.
BOOK A DEMO RIDE HERE
The following applies to a base build -
| Titanium Grade | 6AL - 4V with 3AL - 2.5V |

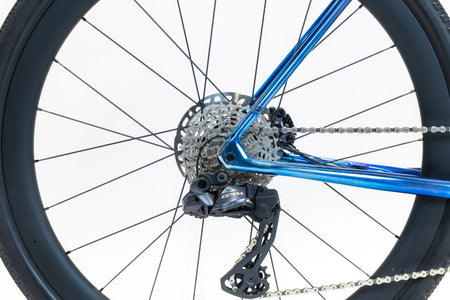

| Groupset | GRX 600 |
| Front Derailleur Clamp | 34.9mm Band Adapter |
| Bottom Bracket Shell | Threaded T47 |
| Bottom Bracket | SN-Vitae T47/68 |
| Cable Routing | Fully Integrated |
| Fork | Integrated Carbon Adventure Fork |
| Brakes | Hydraulic Disc with Flat-Mount Calipers |
| Rotors | 160F/160R |
| Thru Axles | 100mmx12mmF; 142mmx12mmR |
| Wheels | Alloy All-road |
| Tyres | Panaracer X1 |
| Max Clearance | 55mm on 700c |

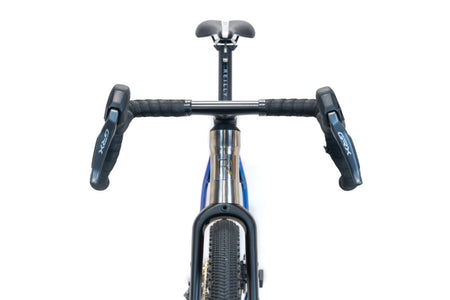

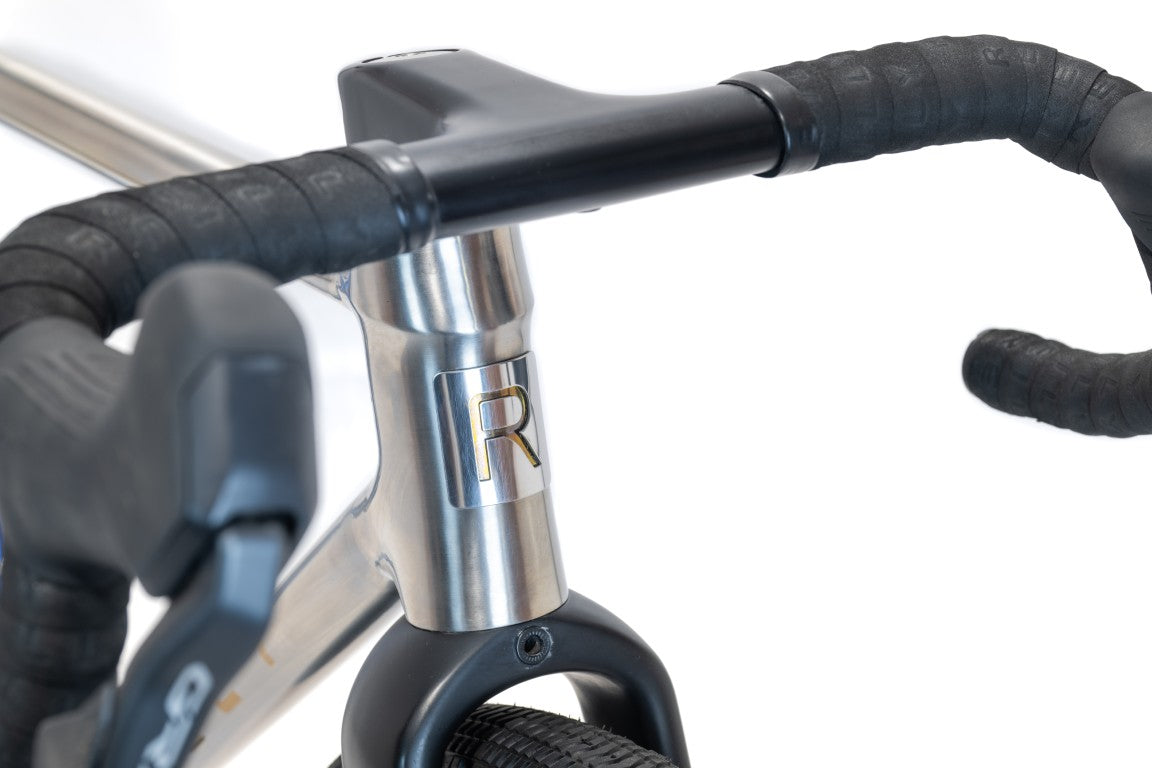

| Headset / Bars / Stem | Semi Integrated / Reilly alloy bars / Reilly alloy stem |
| Bar Tape | Reilly Black EVA Bar Tape |
| Seatpost |
Reilly UD Carbon Seatpost, 31.6mmx350mm, with x2 6AL-4V titanium retaining bolts |
| Seat Clamp | Pembree black |
| Saddle |
Reilly Titanium Alloy ‘Airform’ Saddle |
| Frame Features | x3 Bottle cage mounts |
| Set-Up | British Standard, whereby the right-hand lever operates the front brake and the left-hand lever operates the rear brake |
| Warranty | Lifetime Frame Warranty (Original Owner Only, Non-Transferable) T&Cs Apply |
Frame Geometry
| SIZE | XXS | XS | SMALL | MEDIUM | LARGE |
XL |
XXL |
| SEAT TUBE C/TOP | 460MM | 470MM | 490MM | 510MM | 530MM | 550MM | 570MM |
| TOP TUBE VIRTUAL | 500MM | 520MM | 540MM | 550MM | 570MM | 590MM | 605MM |
| BB HEIGHT | 275MM | 275MM | 275MM | 275MM | 275MM | 275MM | 275MM |
| CHAINSTAY LENGTH | 430MM | 430MM | 430MM | 430MM | 430MM | 430MM | 430MM |
| SEAT TUBE ANGLE | 76 | 76 | 75 | 74 | 73.5 | 73 | 73 |
| HEAD TUBE ANGLE | 69.5 | 70.5 | 71 | 71.5 | 72 | 72 | 72 |
| FORK RAKE | 47MM | 47MM | 47MM | 47MM | 47MM | 47MM | 47MM |
| HEAD TUBE | 100MM | 100MM | 120MM | 135MM | 155MM | 175MM | 195MM |
| AXLE TO CROWN | 400MM | 400MM | 400MM | 400MM | 400MM | 400MM | 400MM |
| STACK | 527MM | 531MM | 552MM | 568MM | 589MM | 608MM | 626MM |
| REACH | 369MM | 388MM | 392MM | 387MM | 396MM | 404MM | 413MM |
| WHEELBASE | 1014MM | 1025MM | 1032MM | 1028MM | 1038MM | 1053MM | 1068MM |
| FRONT CENTRE | 594MM | 605MM | 612MM | 607MM | 618MM | 632MM | 647MM |
"The classiest gravel bike in the world right now" road.cc
